Aircraft body
Before
![before040](https://d4r5m4n5.rocketcdn.me/wp-content/uploads/2021/06/before040.jpeg)
Tool |
Belt sander |
---|---|
Problem |
It took time for deburring due to the large workpiece. |
After
![after040](https://d4r5m4n5.rocketcdn.me/wp-content/uploads/2021/06/after040.jpeg)
Tool | XEBEC Brush Surface (A11-CB100M) |
---|---|
Result | Deburring is fully automated. Consistent finish and cut-down of machining time achieved. |

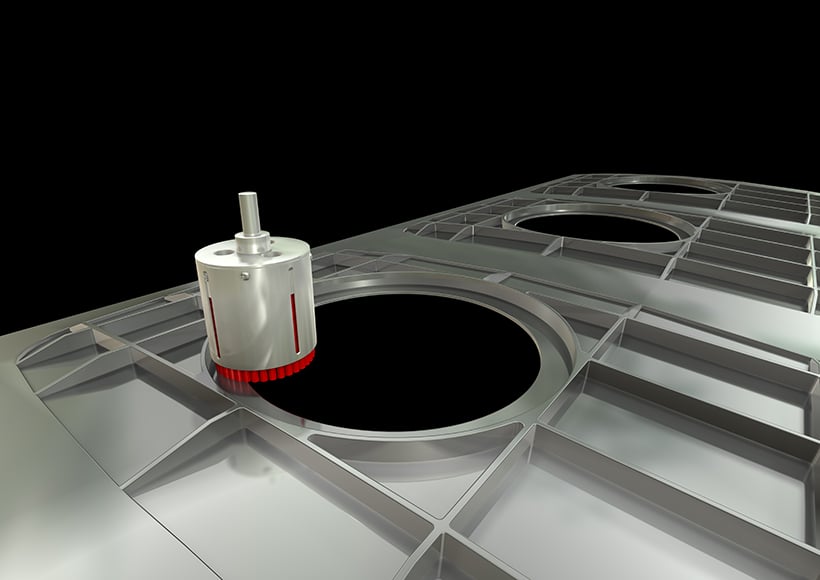

Workpiece information
![work041](https://d4r5m4n5.rocketcdn.me/wp-content/uploads/2021/06/work041.jpeg)
Industry | Aerospace |
---|---|
Part name | Aircraft body |
Material type | Aluminum alloy |
Machining process | Front cutter processing |
Processing conditions
Tool | XEBEC Brush Surface (A11-CB100M) |
---|---|
Details of processing | Deburring the edge face after milling process |
Spindle speed (min⁻¹) | 960 |
Table feed (mm/min) | 500 |
Depth of cut (mm) | 0.3 |
Machining time (sec) | – |
