XEBEC Brush™

Complete deburring and polishing in your CNC machine.

XEBEC Brush uses unique abrasive ceramic fiber material instead of abrasive grain.
Overwhelming grinding power, Consistent cutting performance, No deformation
Enables CNC deburring immediatly after milling and machining operations inside the same machine tool.
Able to remove cutter marks and improve surface roughness up to around Ra=0.1µm.

Grinding power

  • The content ratio of ceramic fiber is approximately 80%
  • Cutting edges on the Brush tips offer overwhelming grinding power

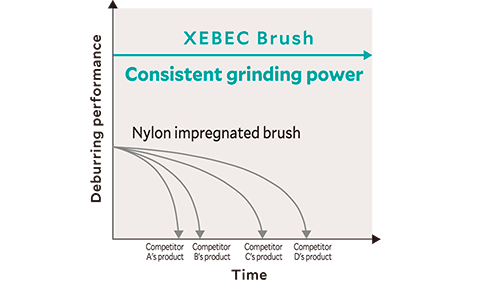

Consistent cutting performance

  • New cutting edges always exposed
  • Consistent cutting performance to the end thanks to the structure of the continuous fiber

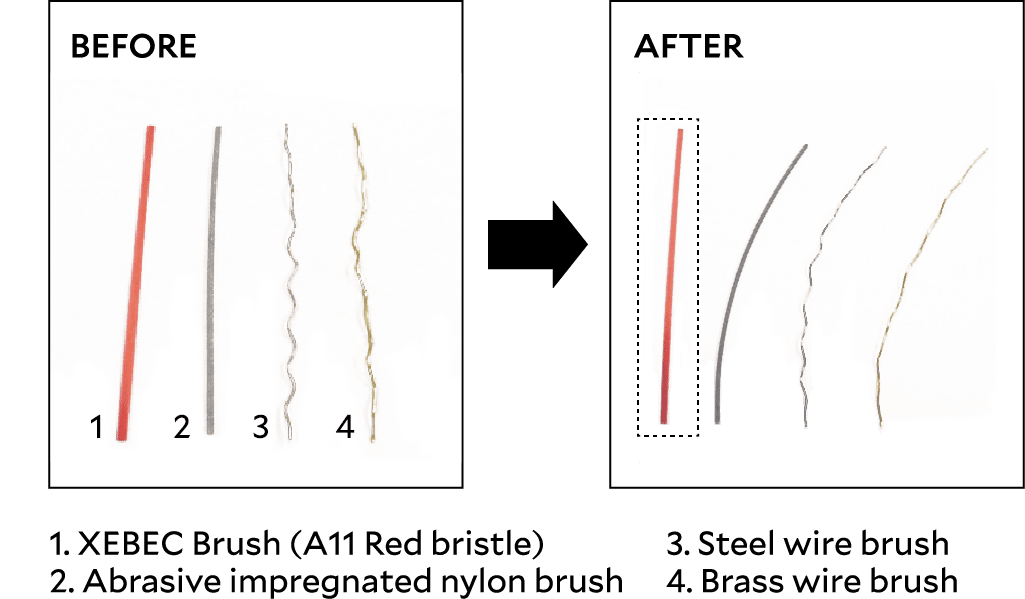

No deformation

  • Maintains its straight shape and does not spread out like a toothbrush
  • Easy to manage on mass production lines

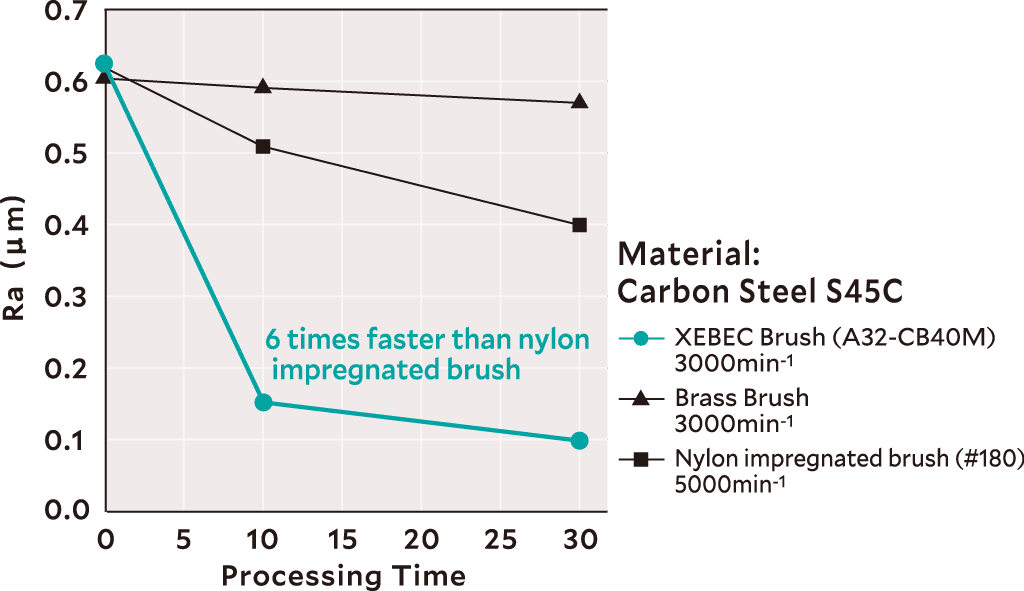

Polishing capacity

  • High polishing capability od XEBEC Ceramic Stone is applied to a brush
  • Best achievable surface roughness: Ra=0.1μm (Rz=0.4μm)

XEBEC Brush™ Surface

Ideal for deburring, cutter mark removal and surface polishing

→Details

XEBEC Brush™ Surface End Type

Ideal for cutter mark removal and polishing on the sealed surface

→Details

XEBEC Brush™ Surface Extra-Large

Ideal for deburring, cutter mark removal and surface polishing with a width of 100mm or more

→Details

XEBEC Brush™ Crosshole

Ideal for deburring, polishing and cutter mark removal on inner diameter and counterbored part

→Details

XEBEC Brush™ Crosshole Extra-Long

Suitable for deburring, polishing and cutter mark removal on inner diameter and counterbored part exceeding 150mm in depth

→Details

XEBEC Brush™ Crosshole Extra-Large

Newly developed bristle.
Realized a longer tool life than other crosshole brushes with improved wear amount and manageability.

→Details

XEBEC Brush™ Wheel Type

Ideal for deburring and polishing on inner diameter, side surface and screw thread

→Details

XEBEC Floating Holder™

The built-in spring helps to maintain stable load, contributing to consistent edge quality and reduction of the frequency to adjust the depth of cut.

→Straight shank type

→BT shank type

XEBEC Short BT Holder™

Compact tool holder whose length under the gauge line is 23.5mm (inluding bush flange thickness 1.5mm).

Effective where tool length is limited

→Details

XEBEC Self-Adjusting Sleeve™

Prefixed Brush length is automatically projected and assists unmanned operation.

Effective to eliminate human error, maintain optimal machining conditions and consistent machining quality.

→Details

XEBEC Brush Length Adjustment Tool™

Jig for quick in-machine brush length adjustment

→Details
