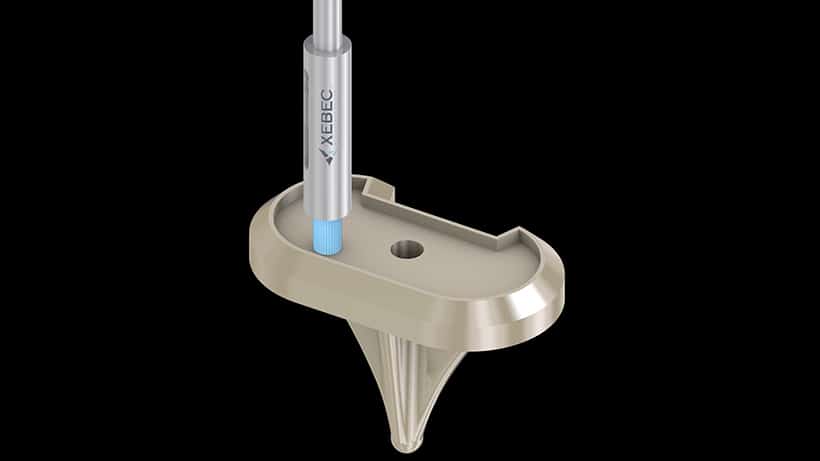

Artificial bone
Before
| Tool |
Grindstone, sandpaper |
|---|---|
| Problem |
It took time for deburring by manual work. Resulted in unstable quality. |
After
| Tool | |
|---|---|
| Result |
Automated polishing with stable quality in a shorter cycle time realized. |
Workpiece information
| Industry | Medical |
|---|---|
| Part name | Artifitial bone |
| Material type | Stainless |
| Machining process | End mill processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A32-CB06M) |
|---|---|
| Details of processing |
Removal of cutter marks and polishing after end milling process |
| Spindle speed (min⁻¹) |
6,500 |
| Table feed (mm/min) |
1,200 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
