Board
Before
| Tool |
Sandpaper |
|---|---|
| Problem |
It was necessary to apply several abrasive papers with different grits. Work hours consuming. |
After
| Tool |

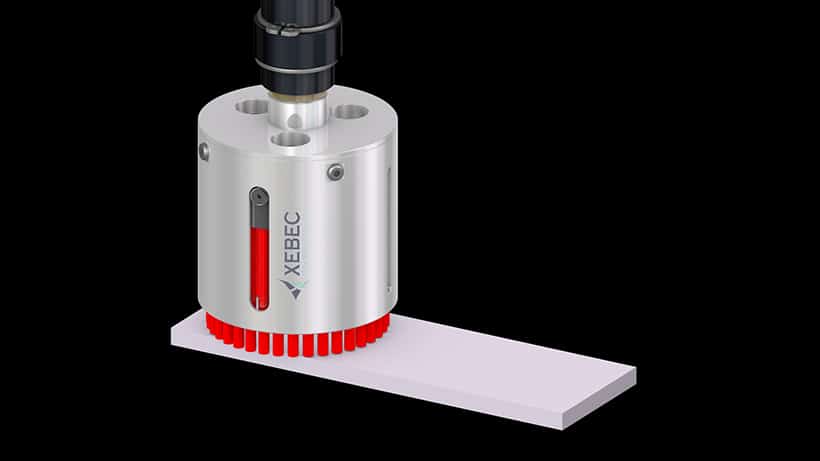

XEBEC Brush Surface (A11-CB100M) /XEBEC Floating Holder (FH-ST20) |
|---|---|
| Result |
Fully automated machine polishing enabled finishing operation in a shorter time. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Board |
| Material type |
AC4C |
| Machining process |
Face mill processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A11-CB100M) / XEBEC Floating Holder (FH-ST20) |
|---|---|
| Details of processing |
Removal of cutter marks and polishing after milling process |
| Spindle speed (min⁻¹) |
960 |
| Table feed (mm/min) |
2,400 |
| Depth of cut (mm) |
0.2 |
| Machining time (sec) |
– |
