Cam cap

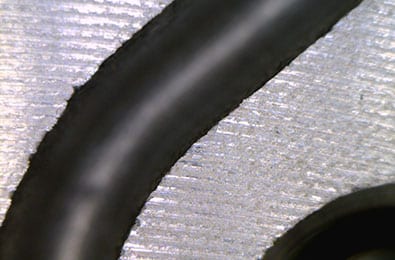

Before
| Tool | Spring-type back deburring tools |
|---|---|
| Problem | Tool
Abrasive-impregnated nylon brush Problem Burrs remained due to insufficient grinding force of nylon brushes and additional manual deburring process required. |

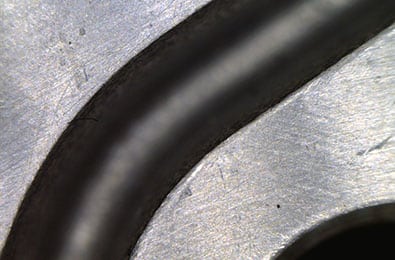

After
| Tool | |
|---|---|
| Result |
Stable and efficient deburring realized by fully automated deburring with machining centers. |

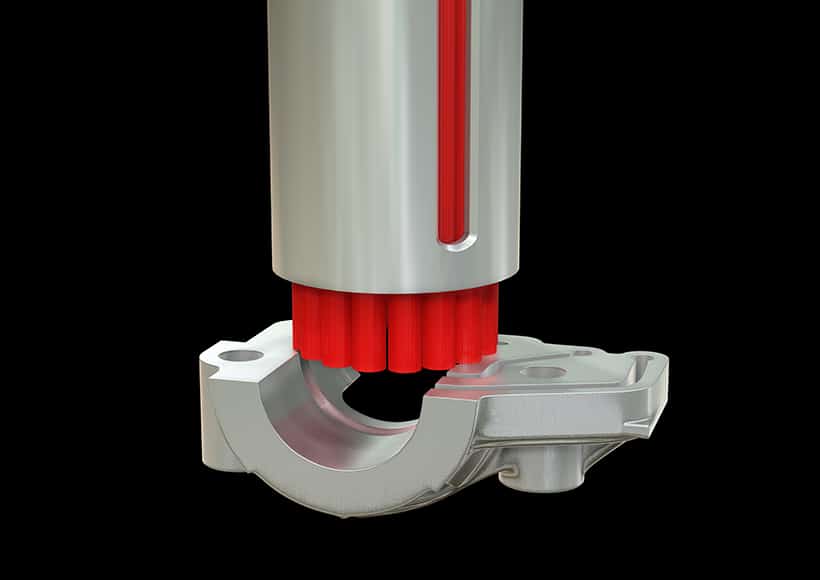

Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Cam cap |
| Material type |
ADC12 |
| Machining process |
Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring the matching surface after face milling process. |
| Spindle speed (min⁻¹) |
1350 |
| Table feed (mm/min) |
2000 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
