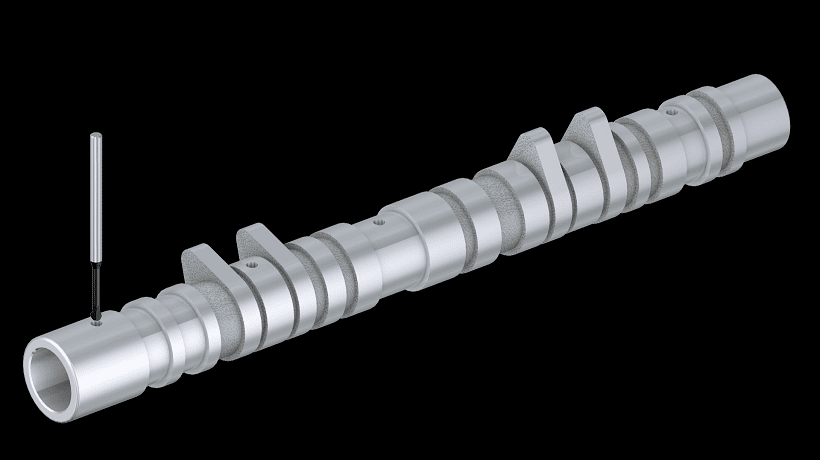

Camshaft
Before
| Tool |
Spring-type back deburring tools |
|---|---|
| Problem |
Uneven edge resulted in over-deburring or incomplete deburring. |
After
| Tool | XEBEC Back Burr Cutter and Path (XC-38-A) |
|---|---|
| Result | Uniform edge quality in shorter operating time realized. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Camshaft |
| Material type |
FCD |
| Machining process |
Drilling |
Processing conditions
| Tool | XEBEC Back Burr Cutter and Path (XC-38-A) |
|---|---|
| Details of processing | Back deburring after drilling |
| Spindle speed (min⁻¹) | 9000 |
| Table feed (mm/min) | 1000 |
| Depth of cut (mm) | 0.25 |
| Machining time (sec) | – |
