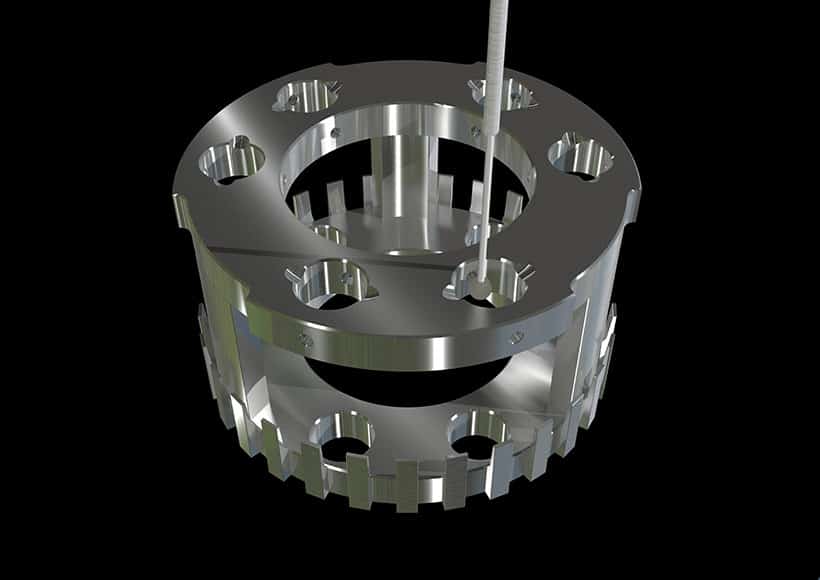

Carrier
Before
| Tool |
Rotary bar and rotating tool |
|---|---|
| Problem |
Rotary bar used with rotary tool is used for processing. Edge shape damaged and secondary burr (back burr) generated. |
After
| Tool | |
|---|---|
| Result |
Stable edge shape realized without generating the secondary burr. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Carrier |
| Material type |
Press |
| Machining process |
Drilling |
Processing conditions
| Tool |
XEBEC Stone Flexible Shaft (CH-PM6B) |
|---|---|
| Details of processing |
Cross hole deburring after drilling process |
| Spindle speed (min⁻¹) |
9,000 |
| Table feed (mm/min) |
– |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
