Common rail

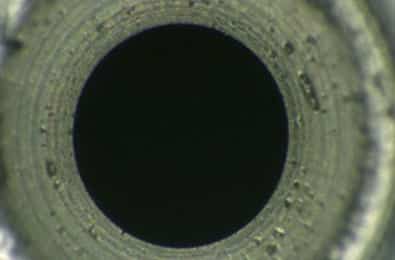

Before

Tool Sandpaper
Problem Low production rate due to unstable surface roughness. Short tool life of sandpaper caused a cost problem.

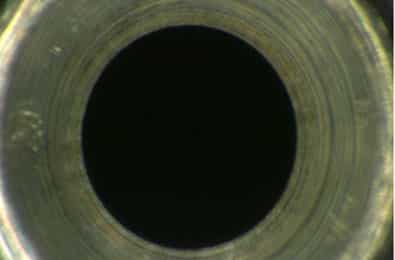

After

Tool  XEBEC Brush for Surface (A21-CB25M)
XEBEC Floating Holder (FH-ST12)
Result Required surface roughness realized in shorter cycle time. Reduction of labor costs corresponding to 20 hours of manual deburring work with sandpaper has been achieved.

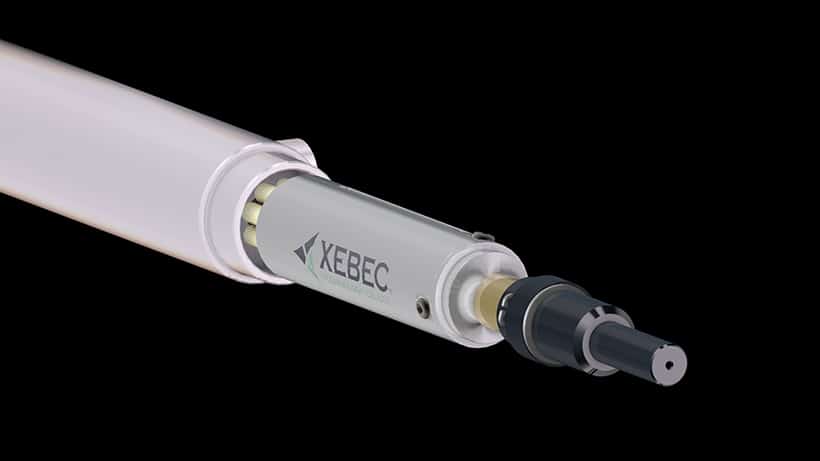

Workpiece information

Industry

Automotive

Part name

Common rail

Material type

S48C

Machining process

Grinding

Processing conditions
Tool

XEBEC Brush for Surface (A21-CB25M)/
XEBEC Floating Holder (FH-ST12)

Details of processing

Deburring the seal surface after grinding process

Spindle speed (min⁻¹)

3,000

Table feed (mm/min)

Depth of cut (mm)

4

Machining time (sec)
