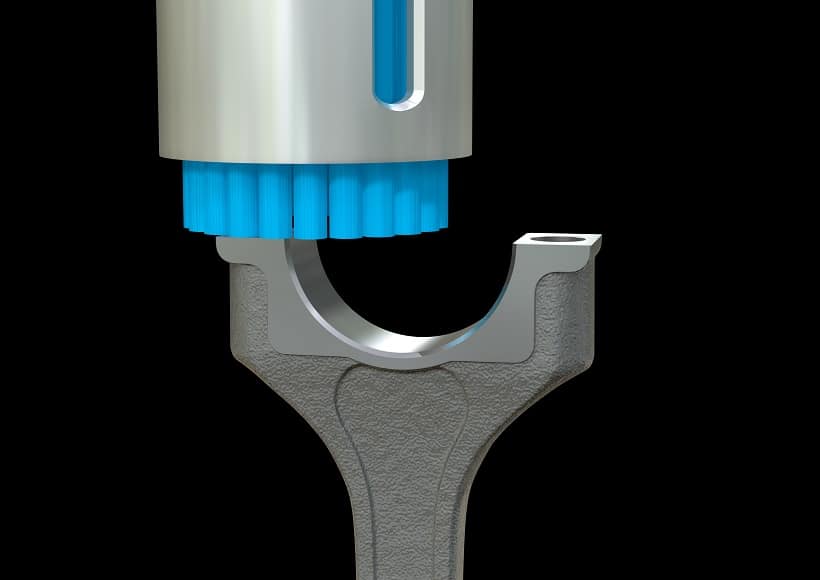

Connecting rod (Matching surface)
Before
| Tool | Abrasive-impregnated nylon brush |
|---|---|
| Problem | Burrs remain after deburring by nylon brush due to low grinding power. Additional manual deburring required. Quality unstable and labor cost increased. |
After
| Tool | XEBEC Brush for Surface (A31-CB40M) |
|---|---|
| Result |
No burrs left and deburring quality stabilized. |
Workpiece information
| Industry | Automotive |
|---|---|
| Part name | Connecting rod (Matching surface) |
| Material type | S45C |
| Machining process | Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush for Surface (A31-CB40M) |
|---|---|
| Details of processing |
Deburring the matching surface after face milling process. |
| Spindle speed (min⁻¹) |
1,300 |
| Table feed (mm/min) |
2,800 |
| Depth of cut (mm) |
0.4 |
| Machining time (sec) |
– |
