Control box

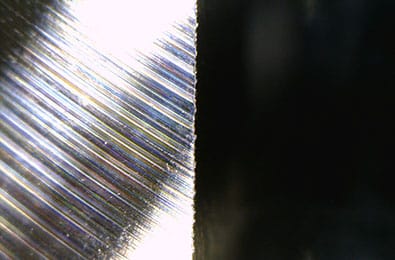

Before
| Tool |
Wire brush |
|---|---|
| Problem |
Burr remains by wire brush due to low grinding power and additional manual deburring required. |

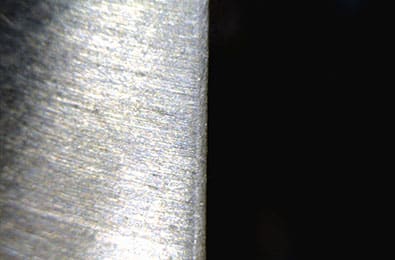

After

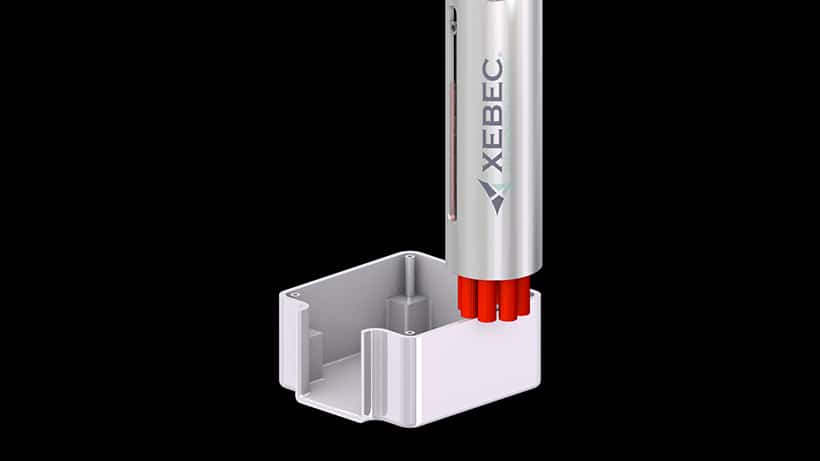

| Tool | XEBEC Brush for Surface (A11-CB25M) |
|---|---|
| Result | No burrs left. Productivity improved drastically. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Control box |
| Material type |
Aluminum alloy |
| Machining process |
Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush for Surface (A11-CB25M) |
|---|---|
| Details of processing |
Deburring the edge face after milling process |
| Spindle speed (min⁻¹) |
4,000 |
| Table feed (mm/min) |
2,500 |
| Depth of cut (mm) |
1 |
| Machining time (sec) |
– |
