Cylinder head

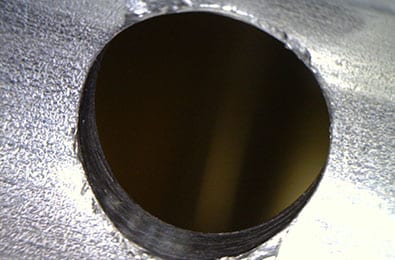

(Oil gallery)Before
| Tool | Abrasive-impregnated nylon brush |
|---|---|
| Problem | Burrs were not removed completely. This caused the problem of quality inspection. |

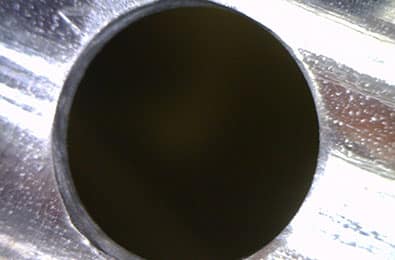

After
| Tool | XEBEC Brush Cross hole Extra-Long (CH-A12-5F) |
|---|---|
| Result | Deburring and polishing quality stabilized. |
Workpiece information
| Industry | Automotive |
|---|---|
| Part name | Camshaft |
| Material type | FCD |
| Machining process | Drilling |
Processing conditions
| Tool | XEBEC Brush Cross hole Extra-Long (CH-A12-5F) |
|---|---|
| Details of processing | Cross hole deburring and internal polishing after drillng process |
| Spindle speed (min⁻¹) | 7200 |
| Table feed (mm/min) | 2000 |
| Depth of cut (mm) | – |
| Machining time (sec) | – |
