Dovetail groove

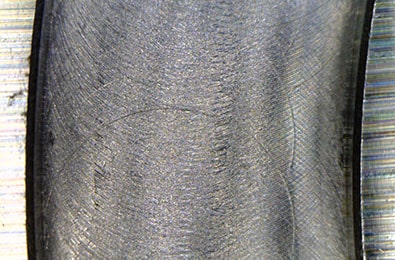

Before
| Tool |
Grindstone, Sandpaper |
|---|---|
| Problem |
Burrs were at hard-to-reach part. It took time for polishing. |

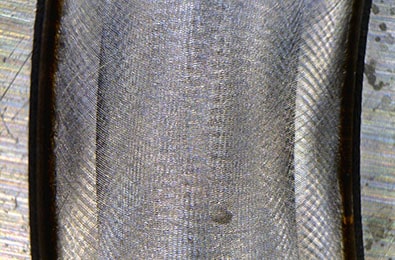

After
| Tool | |
|---|---|
| Result |
Polishing in a shorter time realized with stable quality. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Dovetail groove |
| Material type |
Iron-based |
| Machining process |
– |
Processing conditions
| Tool | |
|---|---|
| Details of processing |
Removal of cutter marks and polishing after dovetailing process |
| Spindle speed (min⁻¹) |
10000 |
| Table feed (mm/min) |
1000 |
| Depth of cut (mm) |
0.3 |
| Machining time (sec) |
– |
