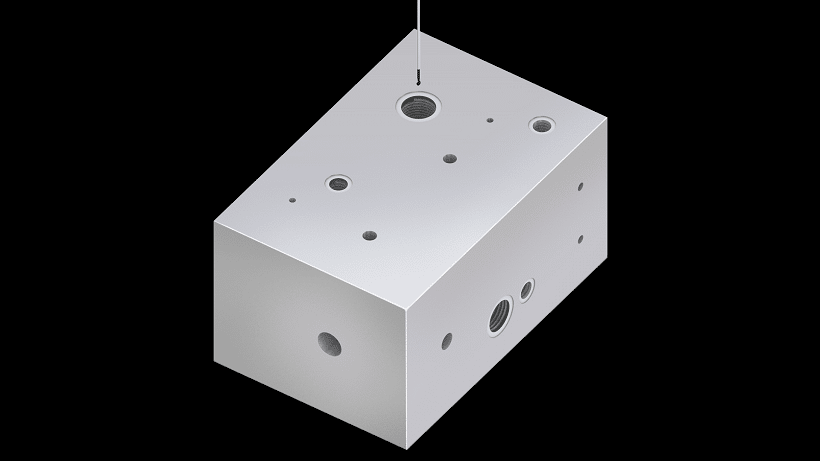

Hydraulic block
Before
| Tool |
File |
|---|---|
| Problem |
CNC deburring was given up once due to various combinations of cross holes and tools were required respectively. Manual deburring with files was inefficient and time consuming. |
After
| Tool | |
|---|---|
| Result |
CNC deburring realized with just 1 type of tool despite many combinations of holes to deburr. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Hydraulic block |
| Material type |
Aluminum |
| Machining process |
Drilling |
Processing conditions
| Tool |
XEBEC Back Burr Cutter and Path (XC-28-B) |
|---|---|
| Details of processing |
Back deburring after drilling |
| Spindle speed (min⁻¹) |
2000 |
| Table feed (mm/min) |
160 |
| Depth of cut (mm) |
– |
| Machining time (sec) |
– |
