Injector body (Nozzles)

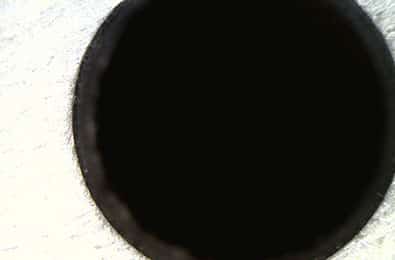

Before
| Tool |
Abrasive-impregnated nylon brush |
|---|---|
| Problem |
Burrs remained and full inspection required, resulting in high labor cost. |

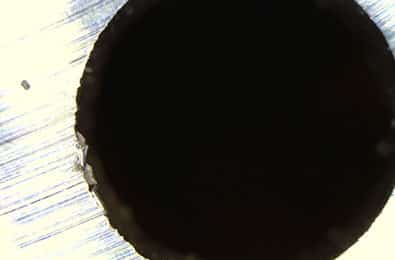

After
| Tool | XEBEC Brush for Surface (A11-CB15M) - XEBEC Floating Holder (FH-ST12) |
|---|---|
| Result |
No burr remaining realized by automated deburring with machining center. Besides, this enabled introduction of random sampling instead of full inspection and cost reduction achieved. Surface roughness of processed area improved. . |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Injector body (Nozzles) |
| Material type |
SCM |
| Machining process |
Drilling |
Processing conditions
| Tool |
XEBEC Brush for Surface (A11-CB15M)/ |
|---|---|
| Details of processing |
Deburring the edge face after drilling process |
| Spindle speed (min⁻¹) |
2,000 |
| Table feed (mm/min) |
– |
| Depth of cut (mm) |
4 |
| Machining time (sec) |
– |
