Injector body (Shoulder)

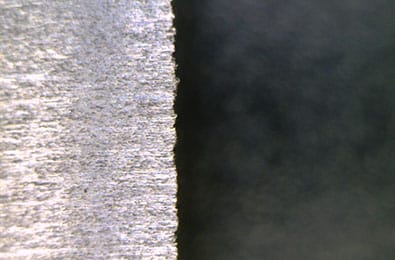

Before
| Tool |
Abrasive-impregnated nylon brush |
|---|---|
| Problem |
Burrs remained and full inspection required, resulting in high labour cost. |

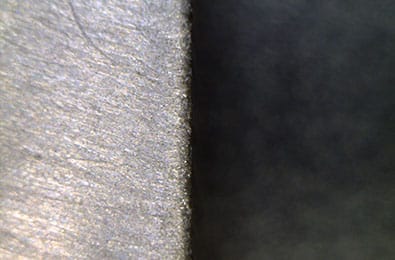

After
| Tool | XEBEC Brush for Surface (A21-CB06M) |
|---|---|
| Result |
Complete removal of burrs achieved by CNC deburring with machining center. Besides, this enabled introduction of random sampling instead of full inspection and cost reduction achieved. Besides, surface roughness of processed area improved. . |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Injector body (Shoulder) |
| Material type |
SCM |
| Machining process |
End milling processing |
Processing conditions
| Tool |
XEBEC Brush for Surface (A21-CB06M)/ |
|---|---|
| Details of processing |
Deburring of boundary line on the casting surface after end milling |
| Spindle speed (min⁻¹) |
5,000 |
| Table feed (mm/min) |
– |
| Depth of cut (mm) |
4 |
| Machining time (sec) |
– |
