Jig plate
Before
| Tool |
Sandpaper |
|---|---|
| Problem |
It took time for deburring. Secondary burrs occurred in the φ1.2 holes sometimes. |
After
| Tool | |
|---|---|
| Result |
Shorter deburring cycle time and stable quality realized. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Jig plate |
| Material type |
Alminium |
| Cutting process |
Drilling |
Processing conditions
| Tool |

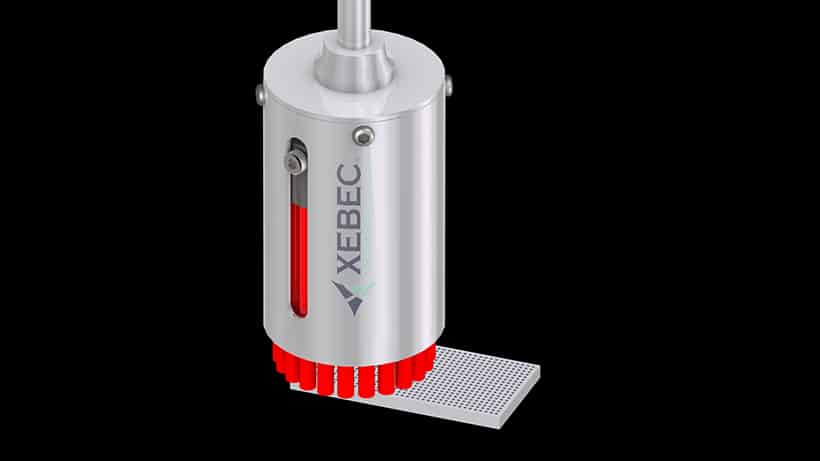

XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring after drilling with φ1.2mm tool |
| Spindle speed (min⁻¹) |
2,000 |
| Table feed (mm/min) |
4,000 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
