Landing gear parts

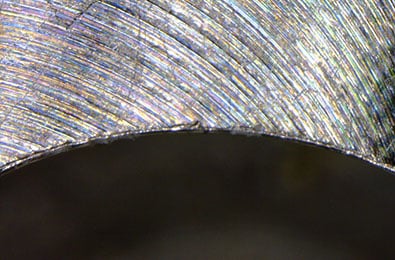

Before
| Tool |
File |
|---|---|
| Problem |
Manual deburring caused unstable quality and long processing time required. |

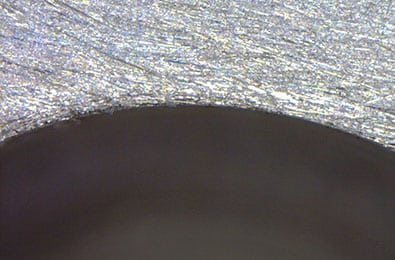

After
| Tool | XEBEC Brush Surface (A11-CB40M) |
|---|---|
| Result | Deburring is fully automated and consistent finish achieved. |
Workpiece information
| Industry |
Aerospace |
|---|---|
| Part name |
Landing gear parts |
| Material type |
Aluminum |
| Machining process |
Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring the edge face after milling process |
| Spindle speed (min⁻¹) |
3,000 |
| Table feed (mm/min) |
2,000 |
| Depth of cut (mm) |
0.7 |
| Machining time (sec) |
– |
