Oil pan

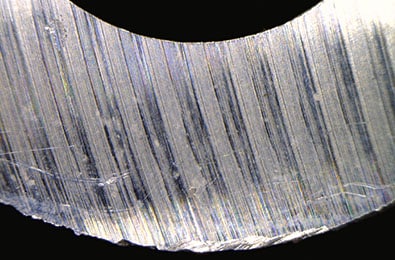

Before
| Tool |
Wire brush |
|---|---|
| Problem |
Scratches are left by deburring with wire brushes. |

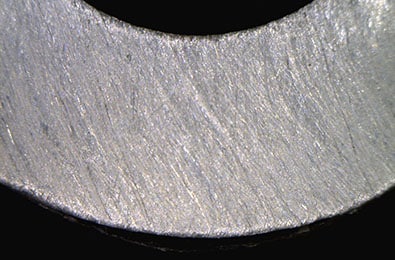

After
| Tool | XEBEC Brush™ Surface |
|---|---|
| Result | Full automation deburring with machining center realized with improved surface quality. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Oil pan |
| Material type |
Alminium alloy |
| Machining process |
Front cutter processing |
| Industry |
Automotive |
|---|---|
| Part name |
Camshaft |
| Material type |
FCD |
| Machining process |
Drilling |
Processing conditions
| Tool | XEBEC Brush for Surface (A31-CB25M) |
|---|---|
| Details of processing | Deburring of the matching surface after face milling process. |
| Spindle speed (min⁻¹) | 2000 |
| Table feed (mm/min) | 3000 |
| Depth of cut (mm) | 0.5 |
| Machining time (sec) | – |
