Pinion gear

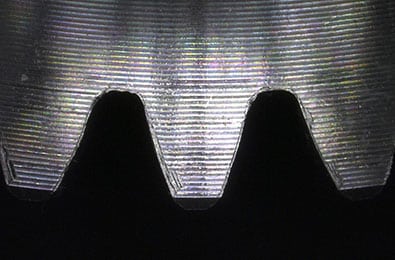

Before
| Tool |
File |
|---|---|
| Problem |
It took time for manual deburring and edge quality was not stable. |

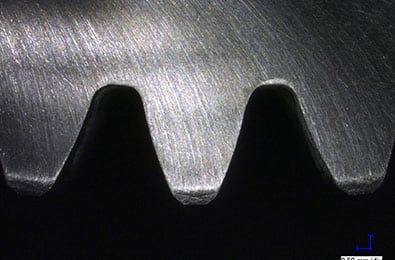

After
| Tool | XEBEC Brush for Surface (A31-CB40M) XEBEC Floating Holder (FH-ST12) |
|---|---|
| Result | Deburring is automated. Consistent finish in a short time. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Pinion gear |
| Material type |
S45C |
| Machining process |
Gear cutting |
Processing conditions
| Tool | |
|---|---|
| Details of processing | Deburring the gear edge face after hobbing process |
| Spindle speed (min⁻¹) | 900 |
| Table feed (mm/min) | 2400 |
| Depth of cut (mm) | 3 |
| Machining time (sec) | – |
