Pipe (Section)
Before
| Tool |
File |
|---|---|
| Problem |
Burrs on the inside and outside edges of the pipe were manually removed by filing. Time-consuming and inefficient work. Finish quality was not consistent. |
After
| Tool | XEBEC Brush Surface (A11-CB25M) |
|---|---|

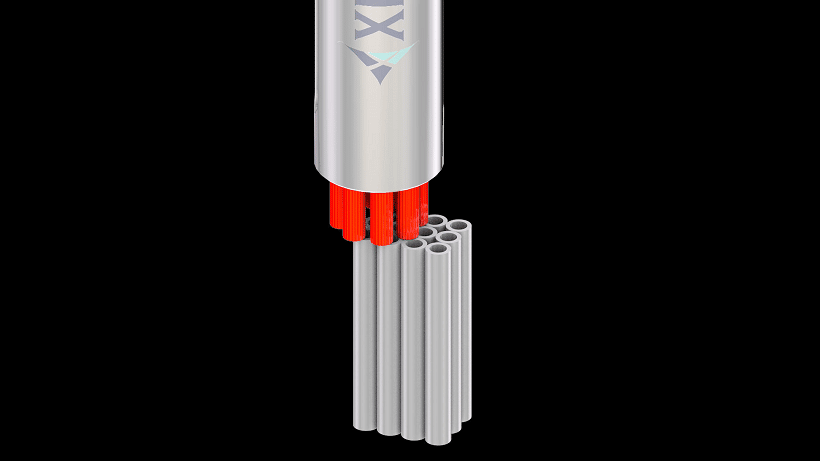

| Result | Fix and put 12 pipes together with a jig and deburr them all at once. Achieved efficient automatic deburring in a shorter time. Edge shapes became uniform and finish quality was improved. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Pipe (Aluminum) |
| Material type |
Aluminum |
| Machining process |
Cutting processing |
Processing conditions
| Tool | XEBEC Brush Surface (A11-CB25M) |
|---|---|
| Details of processing | Deburring the section after cutting process |
| Spindle speed (min⁻¹) | 4000 |
| Table feed (mm/min) | 3000 |
| Depth of cut (mm) | 1.0 |
| Machining time (sec) | – |
