Pipes (SUS)

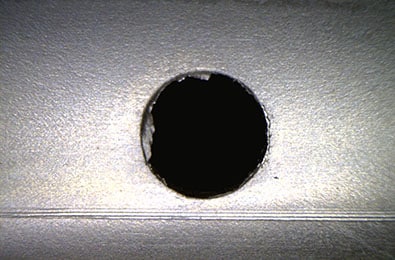

Before

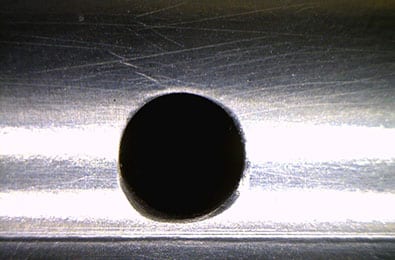

After
| Tool | XEBEC Brush Crosshole (CH-A33-7M) |
|---|---|
| Result | All burrs removed in one process and no secondary burrs generated. |

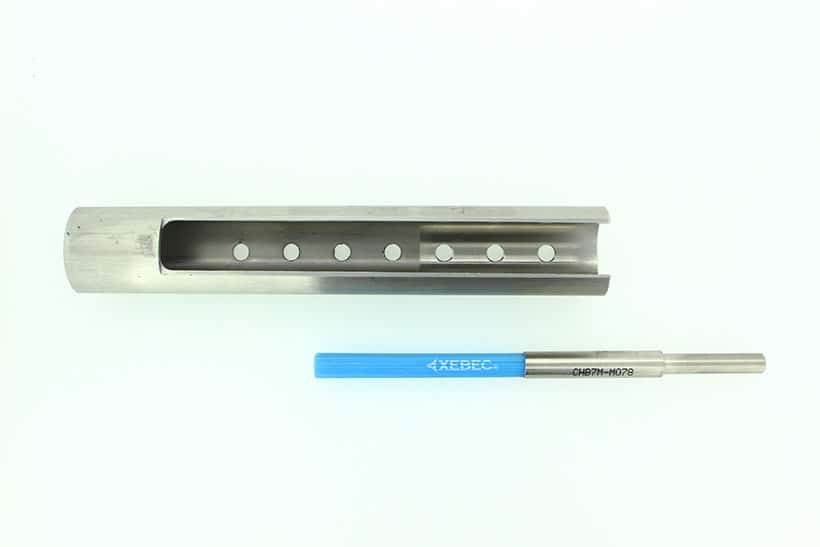

Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Pipe (SUS) |
| Material type |
SUS304 |
| Machining process |
Drilling |
Processing conditions
| Tool |
XEBEC Brush Crosshole (CH-A33-7M) |
|---|---|
| Details of processing |
Crosshole deburring and internal polishing after drilling process |
| Spindle speed (min⁻¹) |
8,000 |
| Table feed (mm/min) |
300 |
| Depth of cut (mm) |
– |
| Machining time (sec) |
– |
