Ring plate
Before
| Tool |
Abrasive-impregnated nylon brush |
|---|---|
| Problem |
Nylon brushes did not have enough grinding power. On the other hand, grindstones did not fit well to workpieces and burr remained. Therefore, deburring could not be automated. |
After

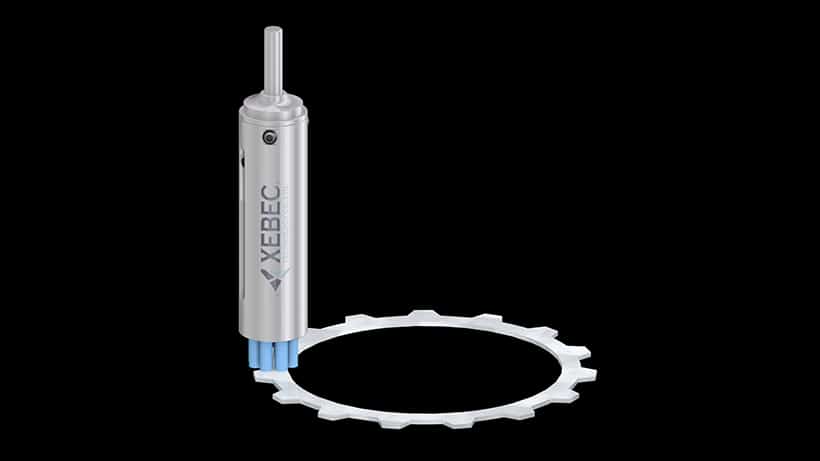

| Tool | XEBEC Brush for Surface (A32-CB25M) |
|---|---|
| Result | No burrs left. Full automation process realized. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Ring plate |
| Material type |
SPH |
| Machining process |
Others |
Processing conditions
| Tool |
XEBEC Brush for Surface (A31-CB25M) |
|---|---|
| Details of processing |
Deburring outer edge after pressing |
| Spindle speed (min⁻¹) |
4000 |
| Table feed (mm/min) |
– |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
