Shaft parts
Before
| Tool |
Nylon/wire brush |
|---|---|
| Problem |
Burrs remained by nylon/wire brushes due to insufficient grinding force and manual deburring was required later. |
After
| Tool | |
|---|---|
| Result |

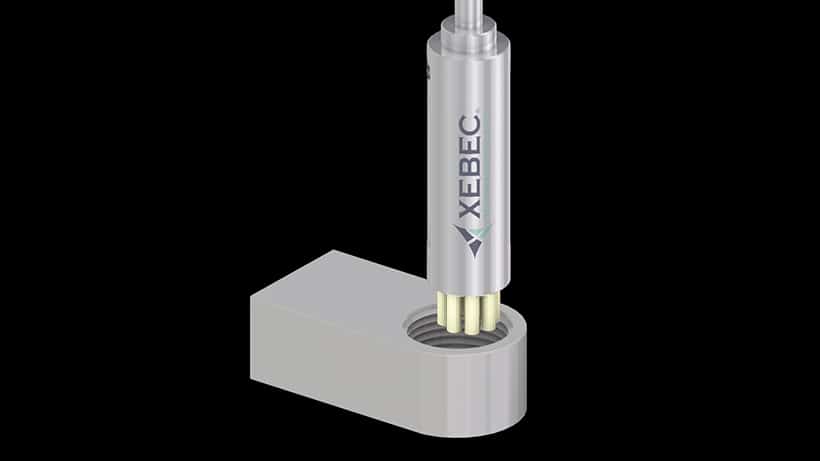

Automated deburring realized with machining center by contouring the cut-out portion of female bolts with brush after processing the tap. Also, surface quality stabilized. |
Workpiece information
| Industry | Automotive |
|---|---|
| Part name | Shaft parts |
| Material type | SCM |
| Machining process | Threading |
Processing conditions
| Tool | XEBEC Brush for Surface (A21-CB25M) |
|---|---|
| Details of processing | Deburring (contouring) unfinished parts of female screw with inner diameter Φ24. |
| Spindle speed (min⁻¹) | 3000 |
| Table feed (mm/min) | – |
| Depth of cut (mm) | – |
| Machining time (sec) | – |
