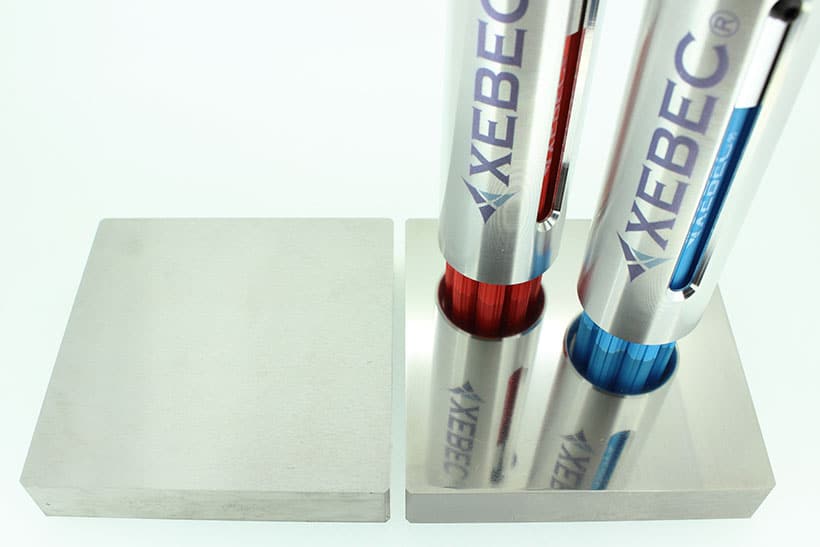

SKD mold

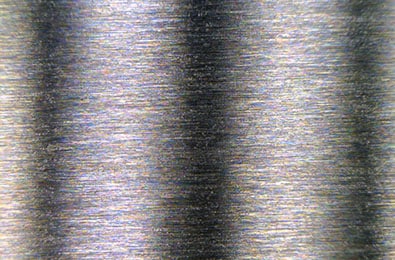

Before

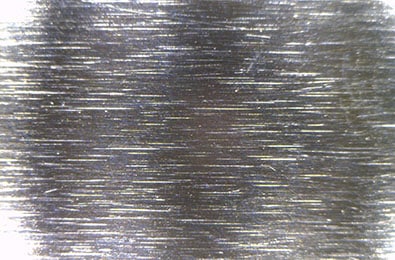

After
| Tool | XEBEC Brush for Surface (A31-CB100M+A11-CB100M) |
|---|---|
| Result | Surface roughness improved from Ra 1.4μm, Rz 6.1μm to Ra 0.029μm, Rz 0.337μm respectively. |
Workpiece information
| Industry | Mold |
|---|---|
| Part name | SKD Mold |
| Material type | SKD |
| Machining process | Others |
Processing conditions
| Tool | XEBEC Brush for Surface (A31-CB100M+A11-CB100M) |
|---|---|
| Details of processing |
Polishing of material surface 1st tool : A11-CB100M, Rotation speed : 1,200 min-1, Feed : 600mm/min, Depth of cut : 0.2mm, 2nd tool : A11-CB100M, Rotation speed：1,200min-1, Feed：600mm/min, Depth of cut : 0.2mm |
| Spindle speed (min⁻¹) | 1,200 |
| Table feed (mm/min) | 600 |
| Depth of cut (mm) | 0.2 |
| Machining time (sec) | – |
