Smartphone (Body)
Before
| Tool | |
|---|---|
| Problem |
It was necessary to design machining line under the prerequisite that deburring is automated. |
After
| Tool | |
|---|---|
| Result |
Fully automated deburring in a machining center enabled stable and efficient deburring. |
Workpiece information
| Industry | Electronics |
|---|---|
| Part name | Smartphone (Body) |
| Material type | Aluminium and plastic based complex material |
| Machining process | End milling |
Processing conditions
| Tool |

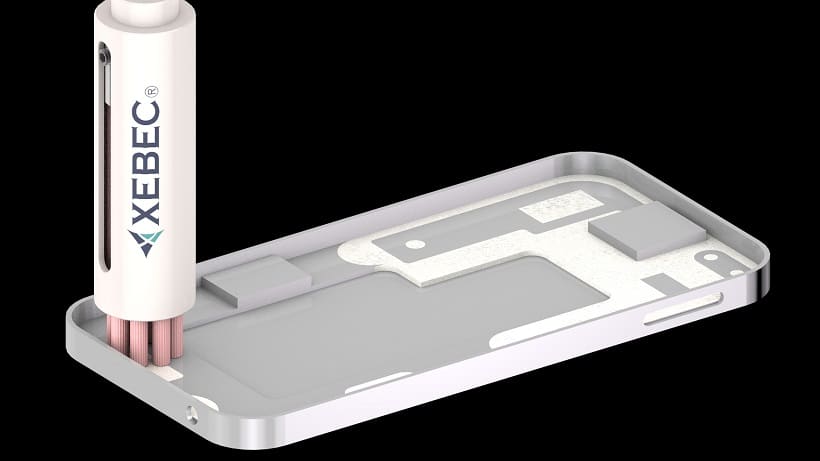

XEBEC Brush Surface (A13-CB15M) |
|---|---|
| Details of processing |
Deburring after end milling process |
| Spindle speed (min⁻¹) |
3,000 |
| Table feed (mm/min) |
4,000 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
