Spool
Before
| Tool |
File |
|---|---|
| Problem |
There were problems such as unstable edge shapes and secondary burrs. |
After
.
| Tool | XEBEC Stone Flexible Shaft Type (CH-PM-6B) |
|---|---|

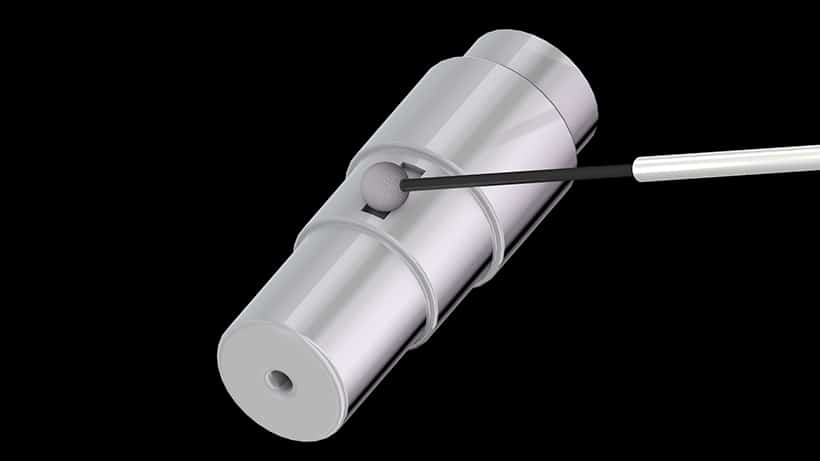

| Result | Simplified deburring realized by moving the tool across the groove. No secondary burrs were reported and quality stabilized. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Spool |
| Material type |
Iron-based |
| Machining process |
Drilling |
Processing conditions
| Tool |
XEBEC Stone Flexible Shaft Type (CH-PM-6B) |
|---|---|
| Details of processing |
Deburring the edge after end milling process |
| Spindle speed (min⁻¹) |
5000 |
| Table feed (mm/min) |
– |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
