Spur gear

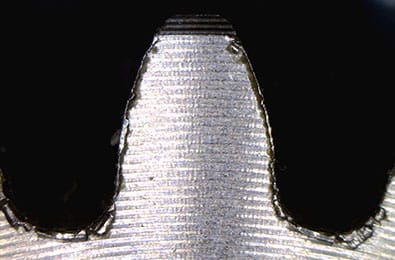

Before
| Tool |
Grindstone |
|---|---|
| Problem |
It took time for deburring due to complicated shape of workpiece. |

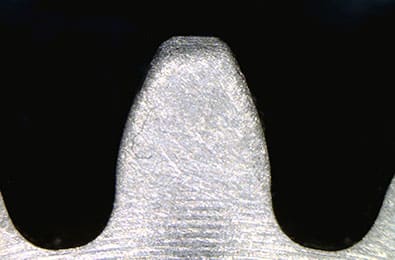

After
| Tool | XEBEC Brush for Surface (A31-CB25M) |
|---|---|
| Result | Automated deburring with stable quality in a shorter cycle time realized. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Spur gear |
| Material type |
S45C |
| Machining process |
Gear cutting |
Processing conditions

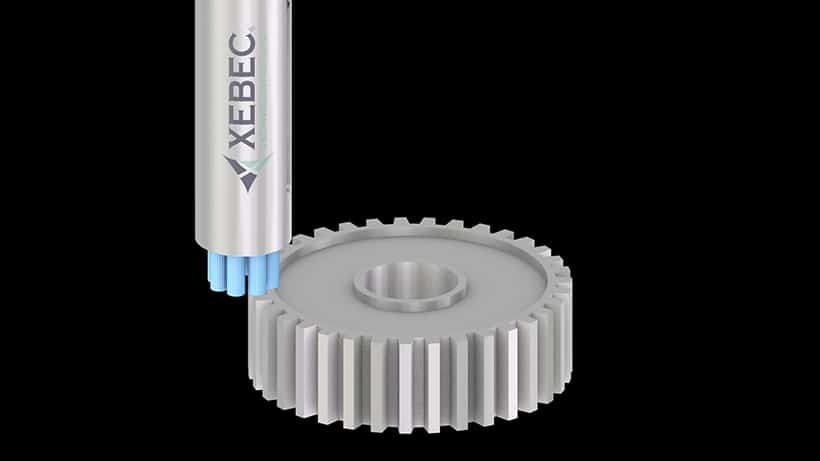

| Tool | XEBEC Brush for Surface (A31-CB25M) |
|---|---|
| Details of processing | Deburring the gear edge face after hobbing process |
| Spindle speed (min⁻¹) | 5,000 |
| Table feed (mm/min) | 2,000 |
| Depth of cut (mm) | 0.5 |
| Machining time (sec) | – |
