SUS mold

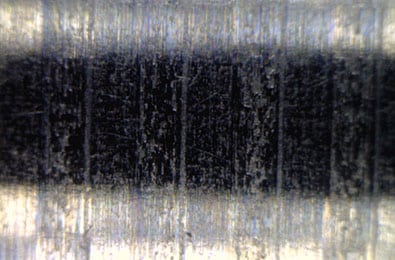

Before

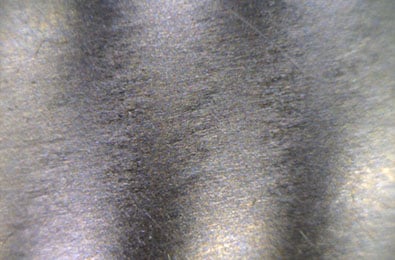

After

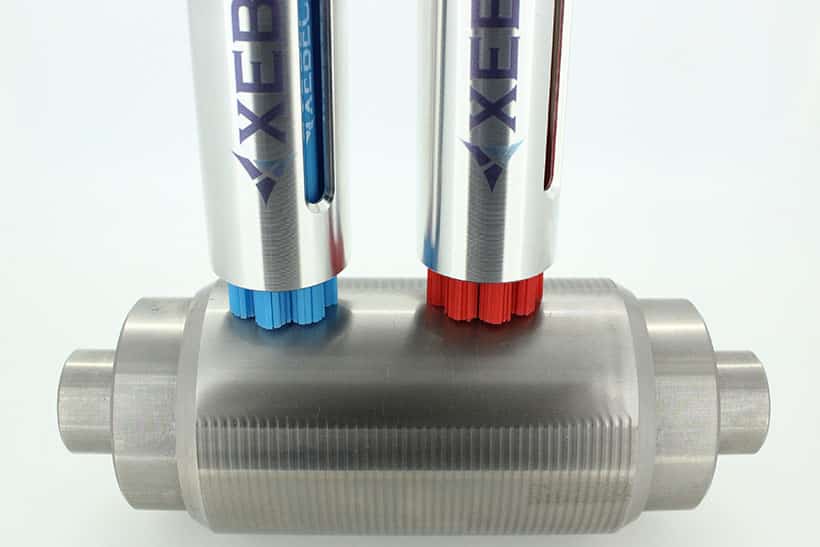

Tool XEBEC Brush for Surface (A31-CB25M+A11-CB25M)
Result Surface roughness improved from Ra 15μm, Rz 48μm to Ra 0.12μm, Rz 0.98μm.




Workpiece information

Industry

General Machinery

Part name

SUS Mold

Material type

SUS304

Machining process

Ball end mill processing

Processing conditions
Tool

XEBEC Brush for Surface (A31-CB25M+A11-CB25M)

Details of processing

Removal of cutter marks and polishing after ball-end milling process

1st tool : A31-CB25M, Rotation speed:5,000min-1, Feed:1,500mm/min, Depth of cut:0.3mm
2nd tool:A11-CB25M, Rotation speed:5,000min-1, Feed:6,000mm/min, Depth of cut:0.3mm

Spindle speed (min⁻¹)

5,000

Table feed (mm/min)

1,500

Depth of cut (mm)

0.3

Machining time (sec)
