Transmission case (Matching surface)

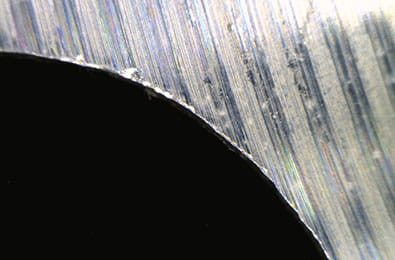

Before
| Tool |
Abrasive-impregnated nylon brush |
|---|---|
| Problem |
Burrs left due to low grinding power. Additional manual deburring processing was required. |

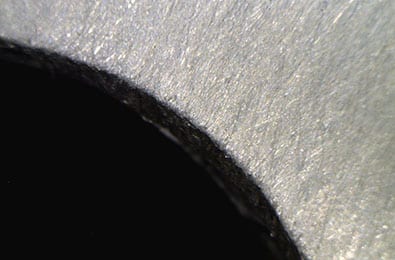

After
| Tool | XEBEC Brush Surface (A11-CB40M) |
|---|---|
| Result |
By the introduction of XEBEC Brush, deburring in a shorter time realized. |
Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
Transmission (Matching surface) |
| Material type |
ADC12 |
| Machining process |
Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring of the matching surface after face milling process. |
| Spindle speed (min⁻¹) |
2,160 |
| Table feed (mm/min) |
7,000 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
