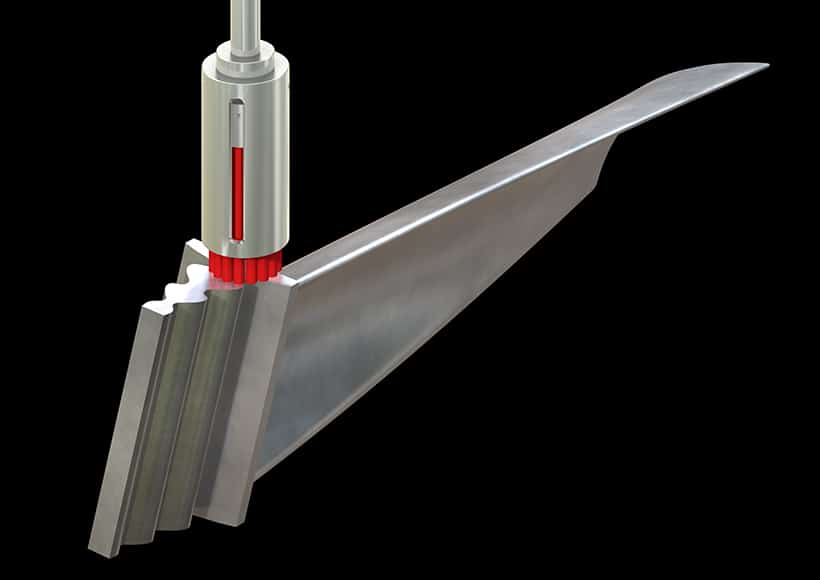

Turbine blade
Before
| Tool |
File |
|---|---|
| Problem |
Deburring caused unstable edge quality. Recovering process was required. |
After
| Tool | |
|---|---|
| Result |
By the introduction of automated deburring, stable quality with even edge shape realized. |
Workpiece information
| Industry |
Aerospace |
|---|---|
| Part name |
Turbine blade |
| Material type |
SUS316 |
| Machining process |
Ball end mill processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A11-CB25M) |
|---|---|
| Details of processing |
Deburring after ball-end milling process |
| Spindle speed (min⁻¹) |
1,000 |
| Table feed (mm/min) |
1,000 |
| Depth of cut (mm) |
0.3 |
| Machining time (sec) |
– |
