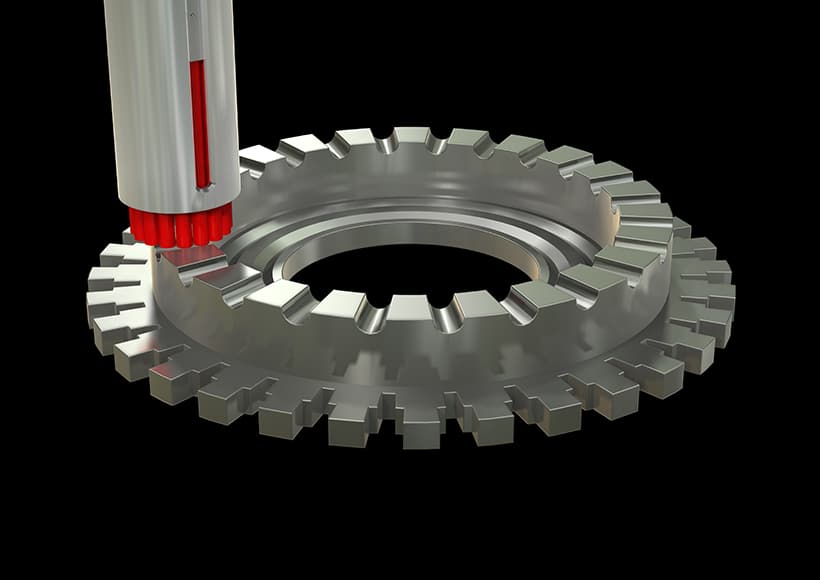

Turbine disk

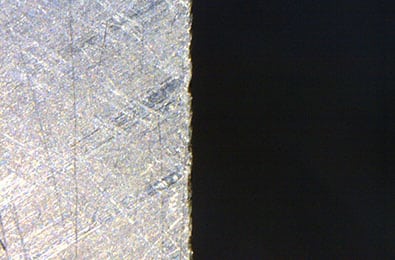

Before
| Tool | Grindstone |
|---|---|
| Problem | Burrs remained and edge quality was inconsistent.. |

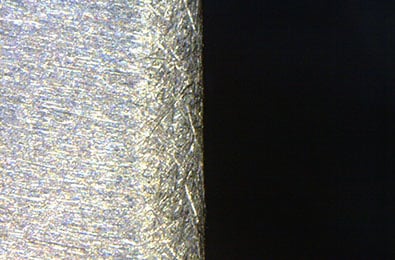

After
| Tool | XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Result | Achieved full automation with machining center. No burrs left and quality stabilized. |
Workpiece information
| Industry |
Aerospace |
|---|---|
| Part name |
Turbine disk |
| Material type |
Inconel |
| Machining process |
Others |
Processing conditions
| Tool |
XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring after grinding process |
| Spindle speed (min⁻¹) |
1500 |
| Table feed (mm/min) |
2400 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
