Valve case (Cross hole)
Before
| Tool |
Cutter |
|---|---|
| Problem |
It took time to deburr manually with cutter. Scratches left on the finishing surface. |
After
| Tool | XEBEC Brush Cross hole (CH-A12-5M) |
|---|---|
| Result | Automated deburring realized by custom made machine. Work efficiency improved and no burrs reported. |
Workpiece information
| Industry | General Machinery |
|---|---|
| Part name | Valve case (Cross hole) |
| Material type | PP (Glass fiber included) |
| Machining process | Drilling |
Processing conditions
| Tool |
XEBEC Brush Cross hole (CH-A12-5M) |
|---|---|
| Details of processing |

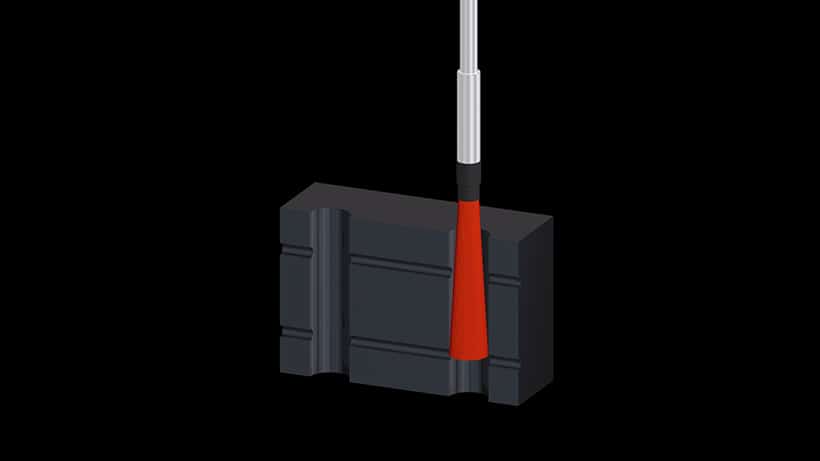

Cross hole deburring after drilling process |
| Spindle speed (min⁻¹) |
8,000 |
| Table feed (mm/min) |
1,000 |
| Depth of cut (mm) |
– |
| Machining time (sec) |
– |
