VCT housing

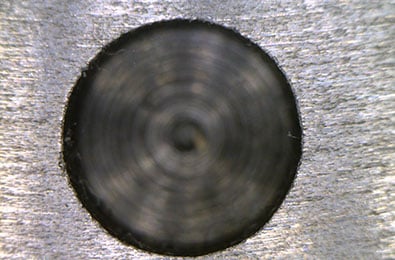

Before
| Tool |
Abrasive-impregnated nylon brush |
|---|---|
| Problem |
Deformation of nylon brush shape occurred in mass production process. It caused unstable quality due to insufficient deburring performance and burr remaining. |

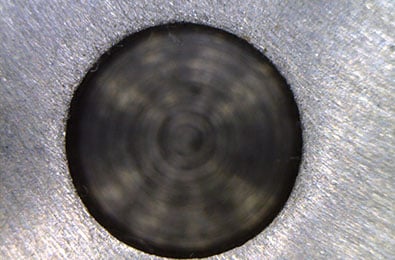

After
| Tool | XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Result |
No deformation of brush shape in mass production process. Stable cutting parameters with no burrs realized. . |

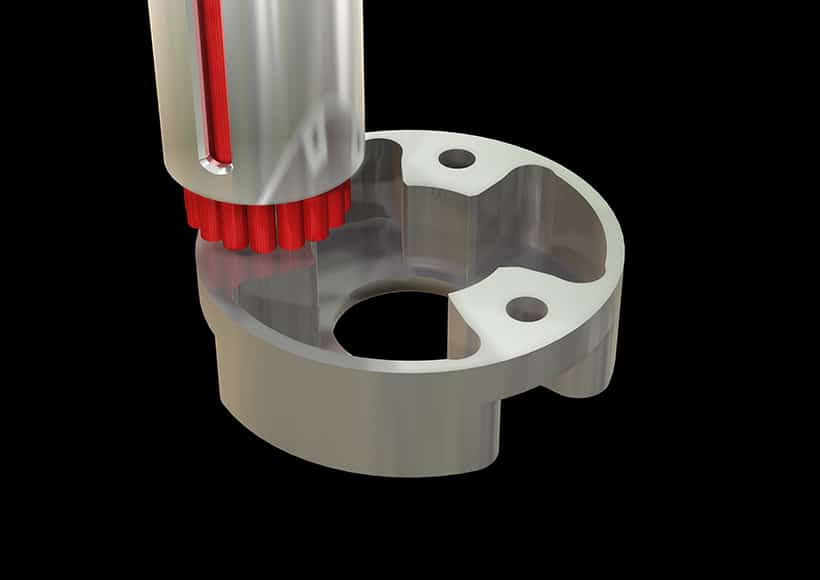

Workpiece information
| Industry |
Automotive |
|---|---|
| Part name |
VCT housing |
| Material type |
Sintered metal |
| Machining process |
Front cutter processing |
Processing conditions
| Tool |
XEBEC Brush for Surface (A11-CB40M) |
|---|---|
| Details of processing |
Deburring the edge face after milling process |
| Spindle speed (min⁻¹) |
500 |
| Table feed (mm/min) |
2,000 |
| Depth of cut (mm) |
0.5 |
| Machining time (sec) |
– |
