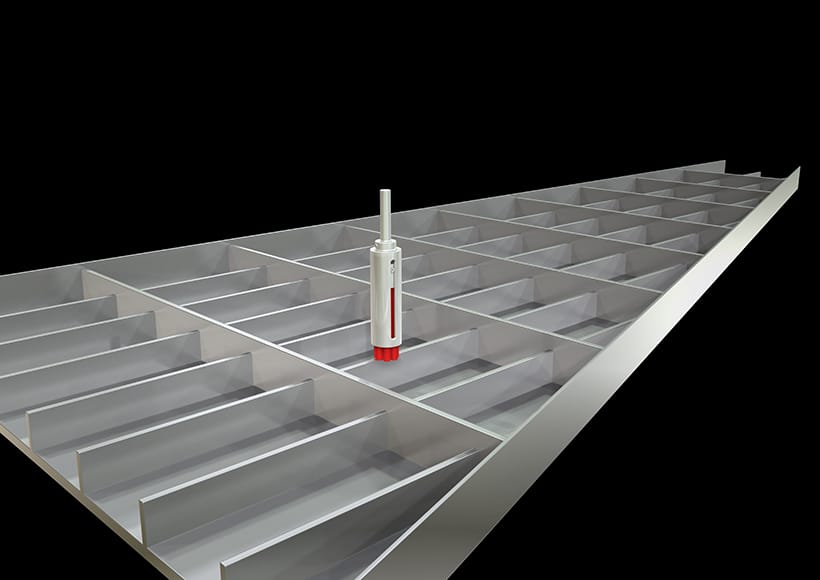

Wing rib

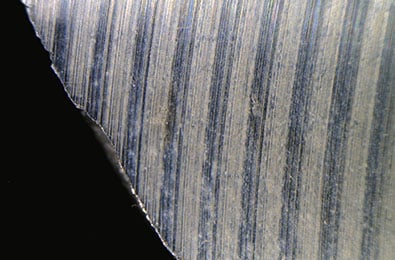

Before
| Tool |
Belt sander |
|---|---|
| Problem |
It took time for deburring due to large workpiece. |
After
| Tool | |
|---|---|
| Result |
By the introduction of automated deburring, stable quality realized in a shorter cycle time. |
Workpiece information
| Industry |
Aerospace |
|---|---|
| Part name |
Wing rib |
| Material type |
Aluminum |
| Cutting process |
End mill processing |
Processing conditions
| Tool |
XEBEC Brush Surface (A11-CB25M) |
|---|---|
| Details of processing |
Deburring after end milling process |
| Spindle speed (min⁻¹) |
4,000 |
| Table feed (mm/min) |
800 |
| Depth of cut (mm) |
0.7 |
| Machining time (sec) |
– |
