XEBEC Brush Length Adjustment Tool™

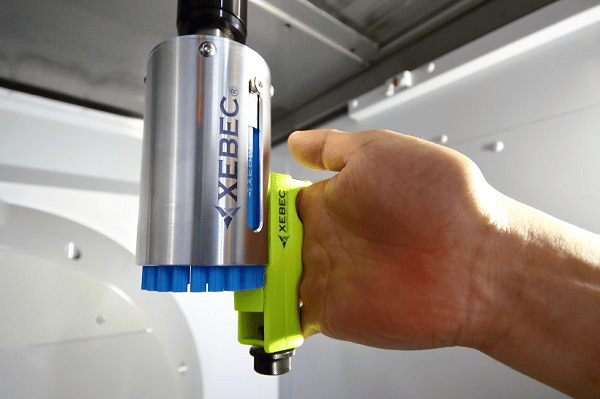

Jig for quick in-machine brush length adjustment
Lineup
Product code Corresponding brush diameter (mm) Size of built-in hexagonal wrench (mm)
XP-EZ-001 φ15・φ25・φ40・φ60・φ100 1.5, 2.0

How to Use

1. Move the brush rest using adjustment knob to set the amount of brush projection.
2. Tighten the fixing nut.

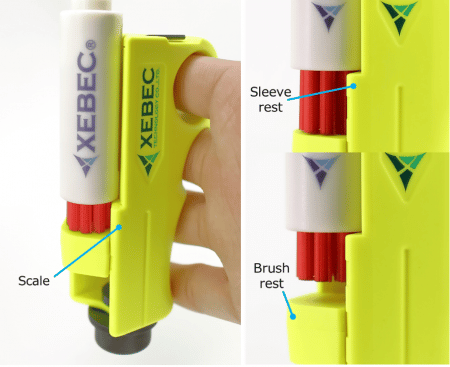

3. Hold the unit in one hand, and align the sleeve rest with sleeve tip.
4. Loosen the screws to allow the brush to drop to the brush rest.

5. Tighten the screws to secure the brush in place.
